ROLLBEND

RBS-RBK

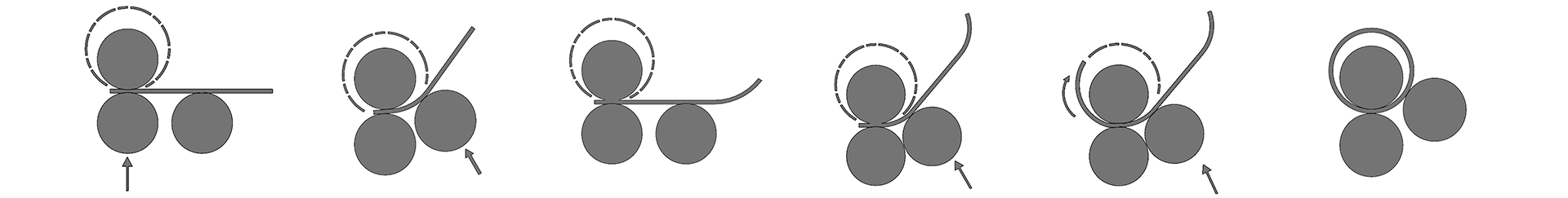

Asymmetrical Three-Roll Bending Machine

Our RBS-RBK models are produced for general light works. Especially used for up to-3,00mm bending capacity. With wide range of use, it is especially preferred by small workplaces.

Category: ASYMMETRICAL BENDING MACHINES

• Cast main body
• Main motor with reducer
• Manual extensile up roll
• Rear, bottom and central rolls that can be moved with double-sided lever screws
• Mobile electrical foot panel

• Hardened shafts with induction

RBS Working Lenght
 Bending Capacity
 Roll Diameter Q
 Motor Rotation
 Motor Power
 Lenght
 Width
 Height
 Weight
MODEL mm mm mm d.dk/rpm kw mm mm mm kg
RBS 1070X86 1070 2.5 86 9 0,75 1550 760 1250 360
RBS 1070X96 1070 3.0 96 9 0,75 1550 760 1250 410
RBS 1570X86 1570 1.5 86 9 0,75 2080 760 1250 460
RBS 1570X96 1570 2.5 96 9 0,75 2080 760 1250 510
RBS 2070X96 2070 1.2 96 9 0,75 2580 760 1250 600
Data based upon bending capacity is given for 240N/mm² plate yielding strength.
